Caldwell | SKU:
Caldwell-PB-60

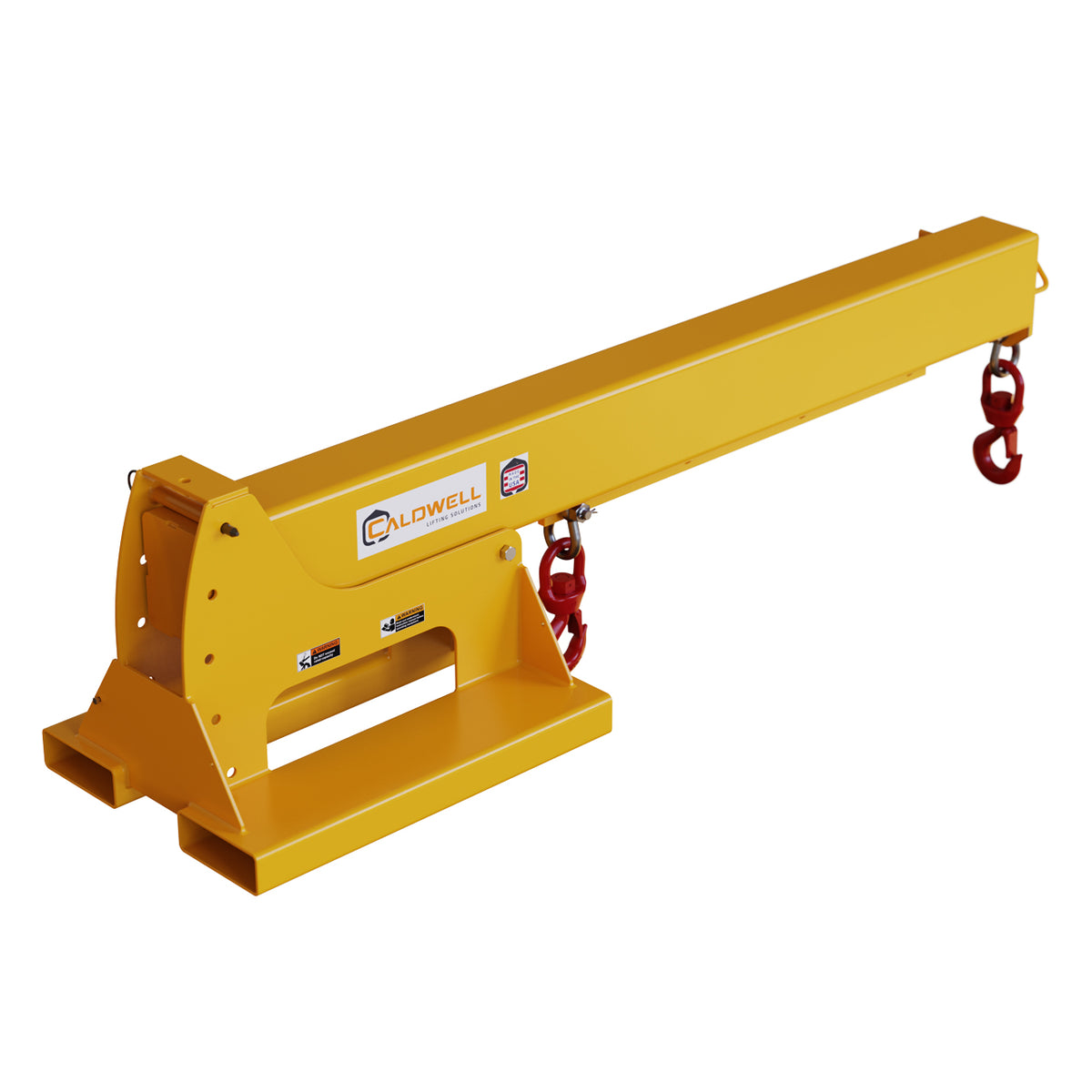

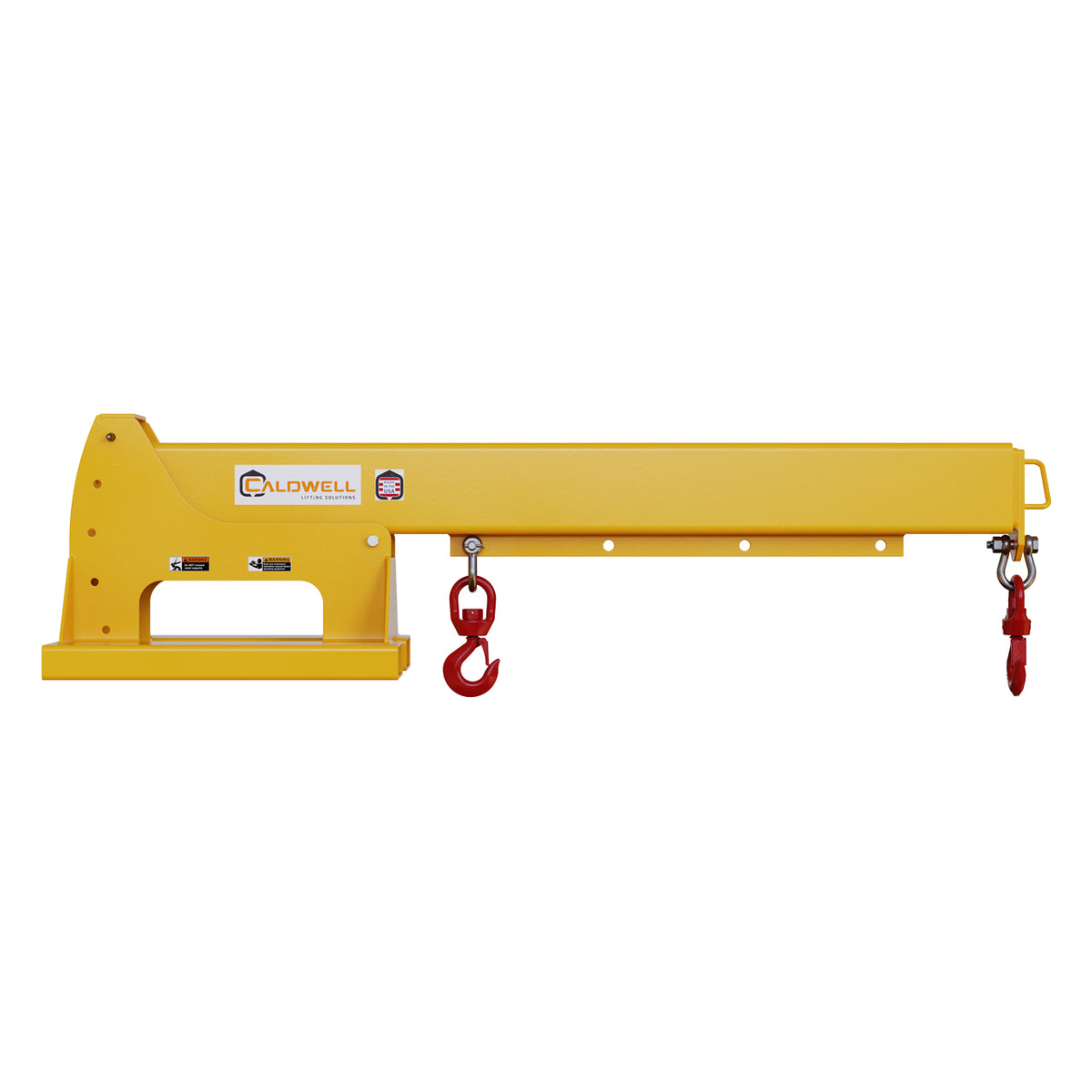

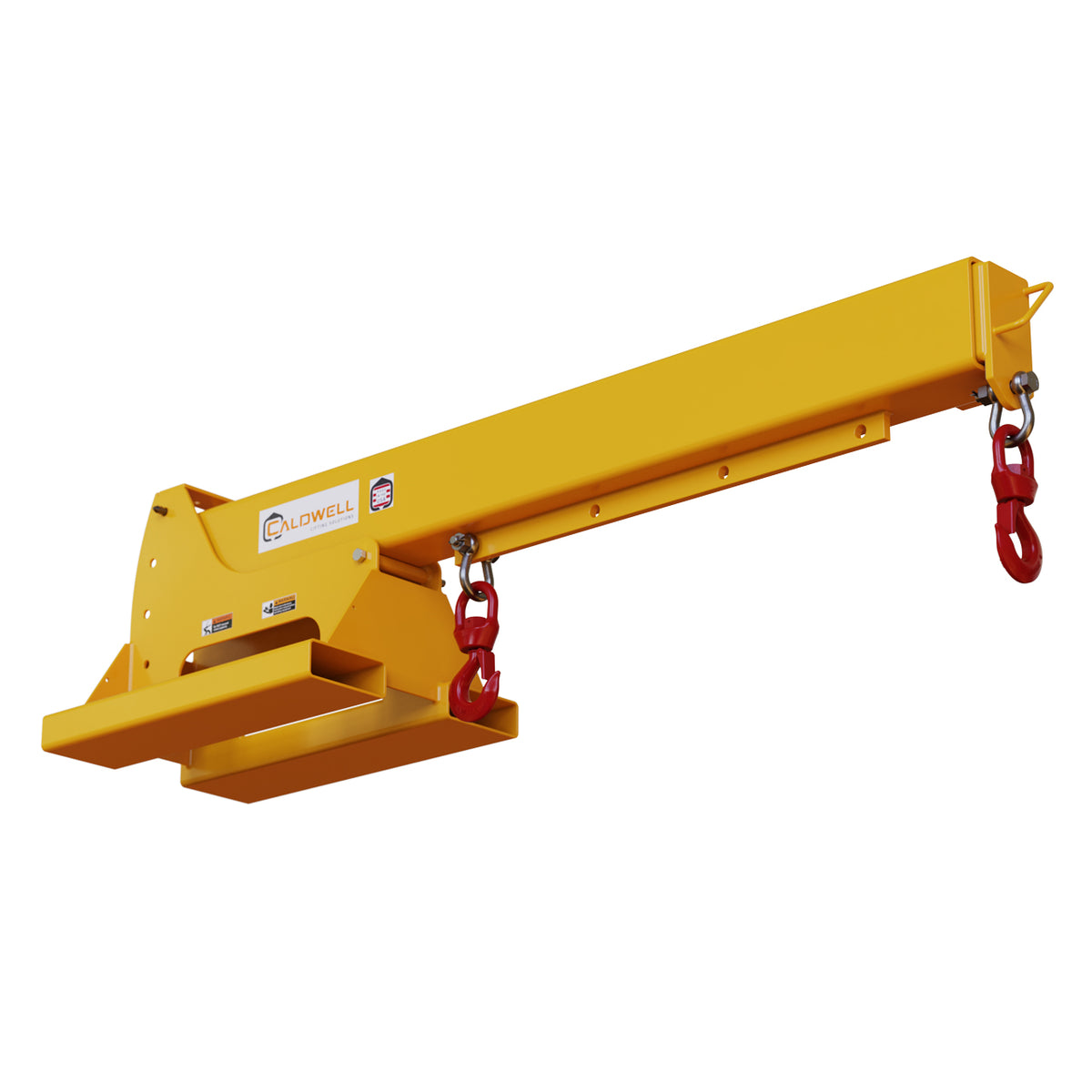

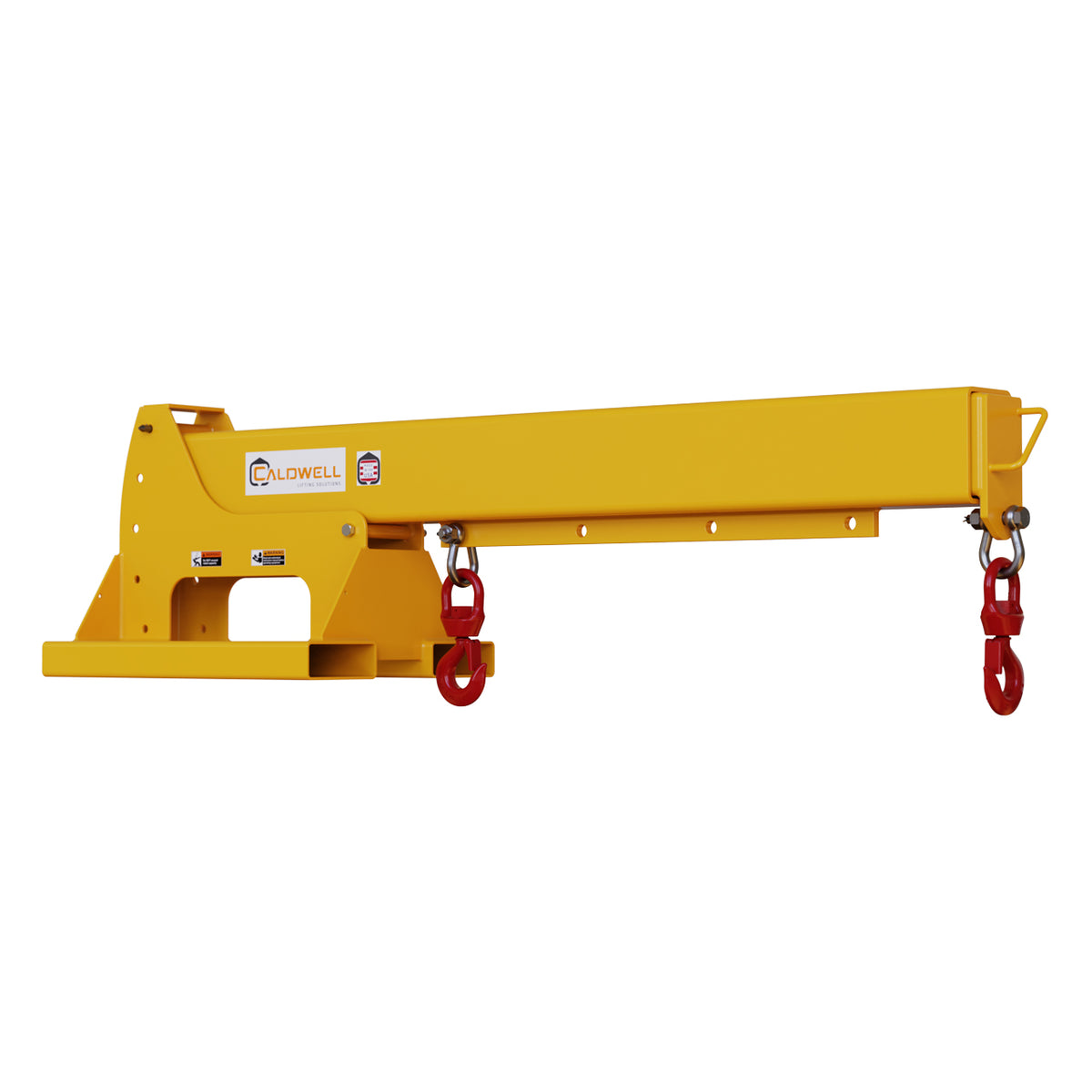

Caldwell Telescopic Pivoting Fork Lift Booms
$3,539.00
Unit price
/
Unavailable
Caldwell Telescopic Pivoting Fork Lift Booms - 6000 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
This product is available but requires more information!
Call (405) 672-0531 or fill out the form for custom pricing:
Caldwell Telescopic Pivoting Fork Lift Booms
From
$3,539.00
Unit price
/
Unavailable
The Pivot Boom Model PB has a telescoping boom with a maximum horizontal reach of 12 feet. The boom also vertically pivots to a height of 6'4". Choose from 3000-, 4000-, 6000-, or 8000-lb capabilities. The versatile unit adjusts vertically in five increments up to 40 degrees.
Features
- Alternate hook positions
- Telescoping boom
- Restraining chain with grab hook
- Handle at end for easy extension
- Fixed or swivel hooks available
- Boom locking t-pin
- Customize fork pockets to match your truck set-up
- Capacity of lift truck and attachment combination may be less than capacity shown on attachment; consult lift truck manufacturer for guidance
- 12,000-lb. capacity unit now available – call for details.
Specifications
| Min Height | 22.625 |
| Fork Pocket Height | 2.5 |
| Fork Pocket Width | 7.5 |
| Out to Out | 22 |
Available Models
| Part No. | Rated Capacity | Capacity at Hook Position 10ft | Capacity at Hook Position 11ft | Capacity at Hook Position 12ft | Capacity at Hook Position 3 6ft | Capacity at Hook Position 7ft | Capacity at Hook Position 8ft | Capacity at Hook Position 9ft | Max Jaw Opening | Temp Weight | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|
| PB-60 | 6000 | 3000 | 2700 | 2500 | 6000 | 5000 | 4200 | 3500 | 1.36 | 420 | 420 |
| PB-80 | 8000 | 4100 | 3600 | 3100 | 8000 | 7000 | 5700 | 4800 | 1.61 | 575 | 540 |
