Caldwell | SKU:
Caldwell-84-5-48

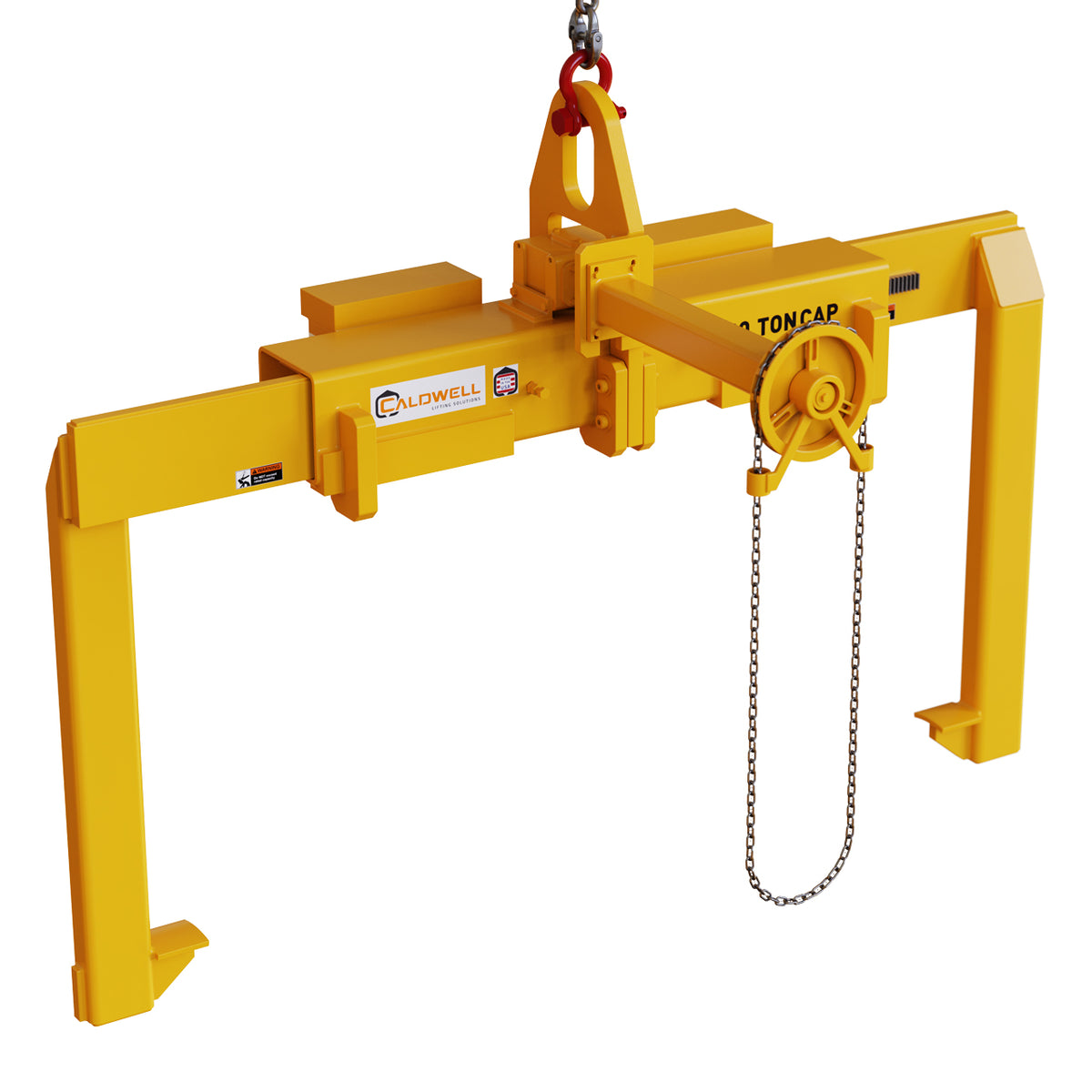

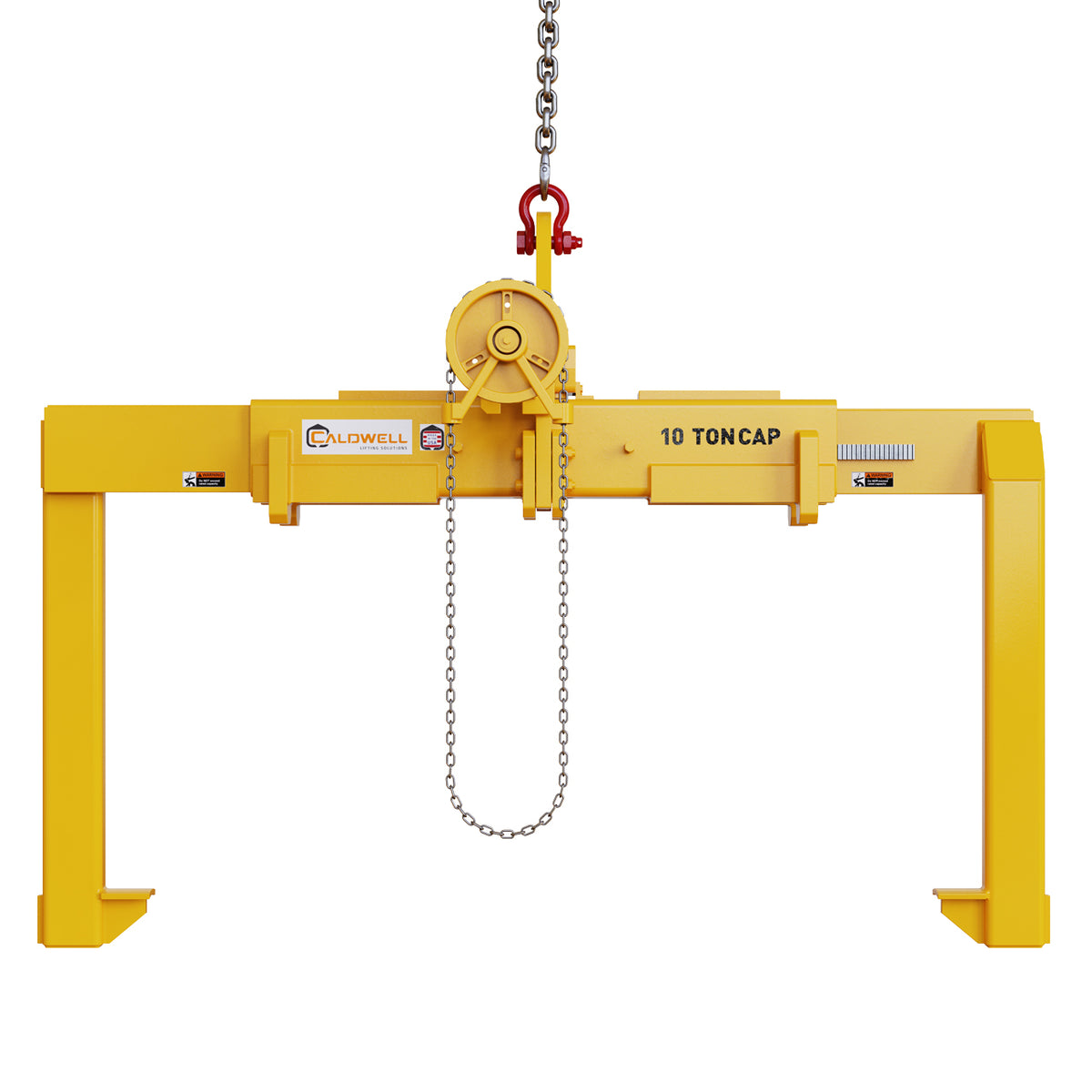

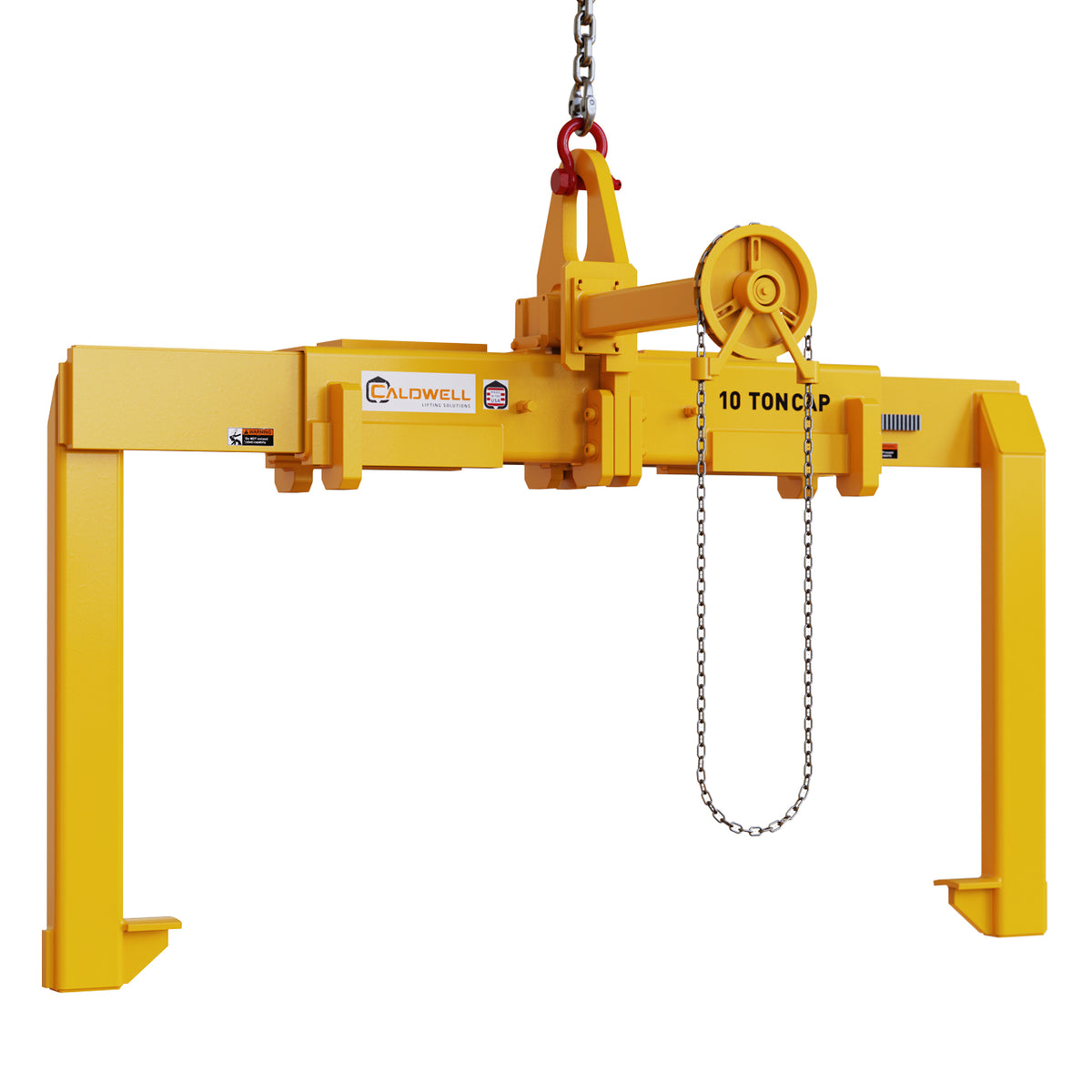

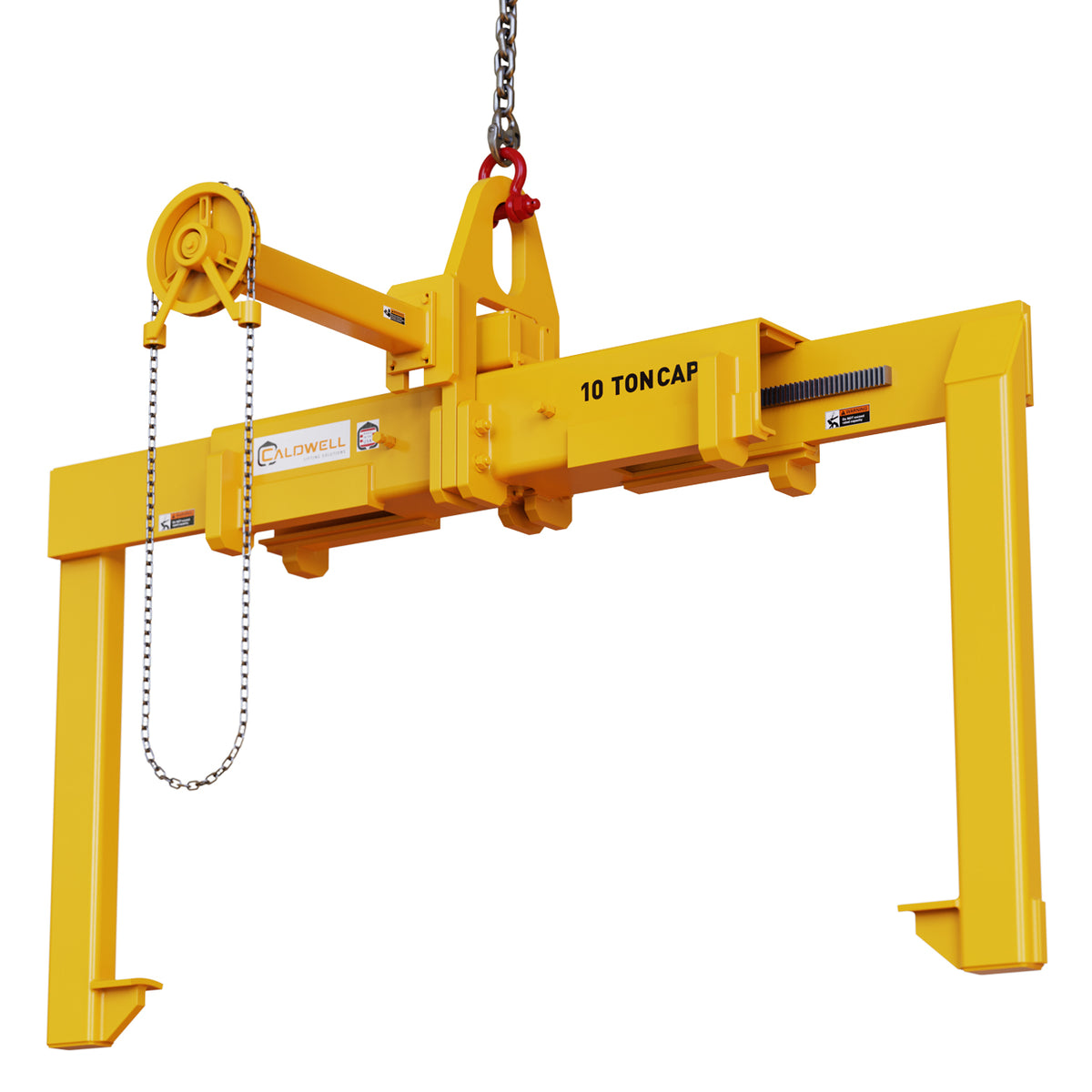

Caldwell Telescoping Coil Lifter
$17,103.00
Unit price
/
Unavailable
Caldwell Telescoping Coil Lifter - 5 / 28 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
This product is available but requires more information!
Call (405) 672-0531 or fill out the form for custom pricing:
Caldwell Telescoping Coil Lifter
From
$17,103.00
Unit price
/
Unavailable
Choose Hand Wheel Leg Drive or Motorized Leg Drive.
Features
- Chain wheel provides easy manual operation
- Two-sided coil lifter requires less aisle space
- Curved lifting pad minimizes coil damage
- Self-locking worm gear prevents legs from inadvertent opening
- Available with hand wheel leg drive option
- Available with motorized leg drive option
- Complies with ASME standards
Specifications
| Foot Width | 4 |
Available Models
| Part No. | Capacity | Throat Opening | Rated Capacity | Bail Cross Section Height | Bail Opening Height | Bail Opening Width | Foot Length | Bail Thickness | Foot Height | Max Coil Width | Min Coil Width | Leg Clearance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 84-5-48 | 5 | 28 | — | 2 | 7 | 4 | 3.5 | 1 | 4.5 | 48 | 16 | 7.5 |
| 84-5-60 | 5 | 26 | — | 2 | 7 | 4 | 3.5 | 1 | 4.5 | 60 | 20 | 7.5 |
| 84-10-48 | 10 | 32 | — | 2 | 7 | 4 | 4 | 1.25 | 5.5 | 48 | 16 | 9.5 |
| 84-10-60 | 10 | 30 | 20000 | 2 | 7 | 4 | 4 | 1.25 | 5.5 | 20 | 60 | 9.5 |
| 84-15-60 | 15 | 34 | 30000 | 2.5 | 9 | 5 | 4 | 1.5 | 6.5 | 60 | 20 | 9 |
| 84-15-72 | 15 | 32 | — | 2.5 | 9 | 5 | 4 | 1.5 | 6.5 | 72 | 24 | 9 |
