Caldwell | SKU:
Caldwell-83HW-2-1/2-24

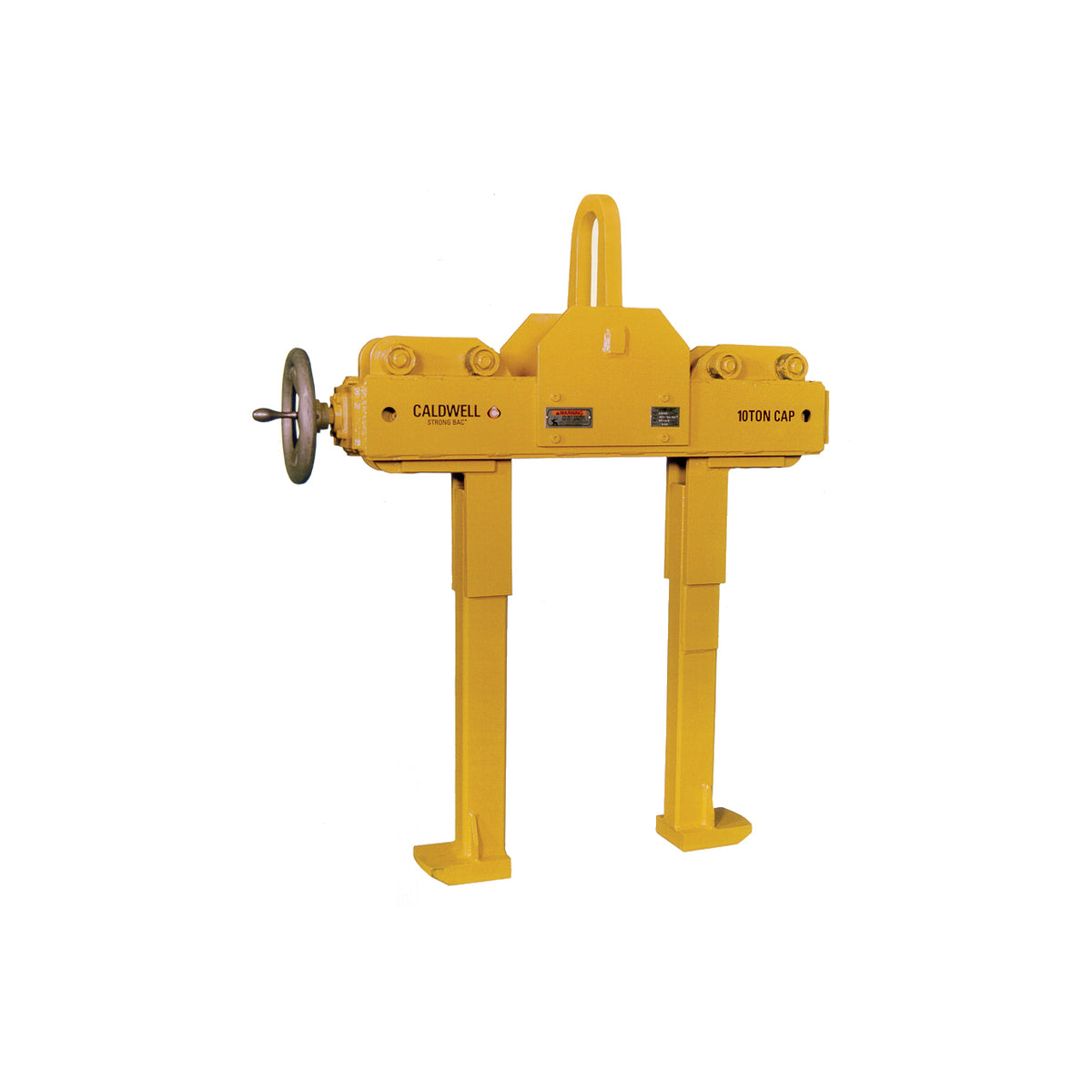

Caldwell Vertical Eye Coil Grab
$20,400.00
Unit price
/
Unavailable
Caldwell Vertical Eye Coil Grab - 2.5 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
This product is available but requires more information!
Call (405) 672-0531 or fill out the form for custom pricing:
Caldwell Vertical Eye Coil Grab
From
$20,400.00
Unit price
/
Unavailable
Simple hand wheel operation adjusts legs to the appropriate I.D. for engagement and disengagement. Stock units available with capacities of 2-1/2 to 10 tons. Need something bigger or smaller? Call 800.628.4263 to talk to our Customer Service team to discuss options.
Features
- Handles any size coil I.D. from 16-24 inches
- Efficient handling of vertically stacked coils
- Available with chain wheel drive or can be motorized
- Complies with ASME standards
Specifications
| Min Coil Inner Dimension | 16 |
| Max Coil Inner Dimension | 24 |
| Foot Clearance | 15.5 |
Available Models
| Part No. | Capacity | Rated Capacity | Foot Width | Bail Cross Section Height | Bail Opening Height | Bail Opening Width | Bail Thickness | Coil Width | Foot Thickness | Headroom | Temp Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 83HW-2-1/2-24 | 2.5 | — | 5 | 1.5 | 5 | 3 | 0.75 | 20 | 0.75 | 36 | 250 |
| 83HW-5-24 | 5 | 10000 | 6 | 2 | 7 | 4 | 1 | 24 | 1 | 36 | 350 |
| 83HW-7.1/2-24 | 7.5 | 15000 | 6 | 2 | 7 | 4 | 1 | 24 | 1 | 42 | 425 |
| 83HW-10-24 | 10 | 20000 | 6 | 2.5 | 9 | 5 | 1.25 | 30 | 1.5 | 50 | 500 |
