Clevis & Clevis Sealed Swivel – Model SS-67

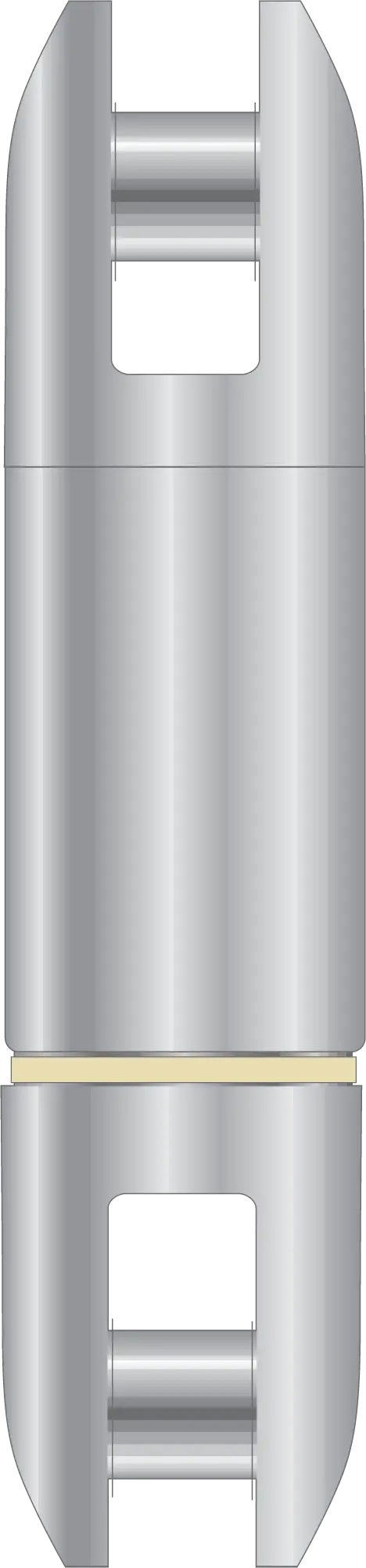

Electroline's Model SS-67 ocean-surface swivel is designed for above-water applications and features two clevis (fork/jaw) fittings with included pins.
Constructed from stainless steel, the swivel has a grease-filled housing that is sealed to prevent water entry.
Angular contact bearings provide higher-speed, low-torque rotation for longer rope lengths.
The tapered ends are designed to prevent snags on other equipment or cables.
Ultimate strength exceeds the rated Working Load Limit (WLL).
Available Products
| Part No. | e WLL 3:1 (Pounds) | WLL 5:1 (Pounds) | A | C - Pin Dia. | Dimensions (In.) | Overall Length | ||
|---|---|---|---|---|---|---|---|---|
| D | F | I | ||||||
| SS-6725 | 5,000 | 3,000 | 1-1/4" | 3/8" | 19/32" | 11/16" | 7/16" | 5" |
| SS-6737 | 8,000 | 4,800 | 1-1/2" | 7/16" | 19/32" | 13/16" | 9/16" | 5-7/8" |
| SS-6750 | 11,500 | 6,900 | 1-7/8" | 5/8" | 3/4" | 15/16" | 13/16" | 7-1/2" |
| SS-6762 | 18,500 | 11,100 | 2-7/16" | 7/8" | 1" | 1-9/16" | 1-1/8" | 11" |
