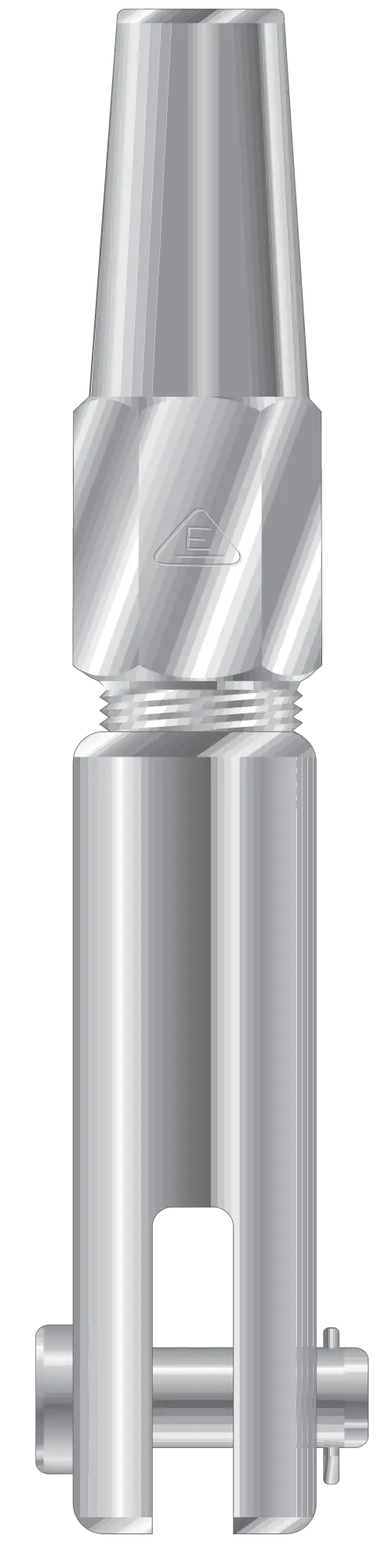

Clevis Socket Fitting for Extruded Jacket Kevlar Rope
Electroline synthetic rope fittings for Kevlar ropes with extruded jackets excel in meeting the need for a quick, reliable end termination.
The fittings perform on polyurethane, Nylon II, and Hytrel jacket materials for ropes with the following construction: standard wire rope, contra-helical, parallel, and electro-mechanical.
This fitting features a clevis (fork/jaw) connection and a swageless rope termination, allowing it to be quickly installed in the field without special tools.
Available for ropes 1/8 to 3/4" in size.
Machined from aluminum to provide lightweight strength.
Available Products
| Rope Size (In.) | Part No. | Dimensions (In.) | |||||
|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | ||
| 1/8 | KA-112 | 3/8" | 5/8" | 4-7/16" | 3/4" | 5/16" | 5/16" |
| 3/16 | KA-118 | 1/2" | 3/4" | 4-15/16" | 15/16" | 3/8" | 3/8" |
| 1/4 | KA-125 | 19/32" | 7/8" | 6" | 1-1/16" | 3/8" | 7/16" |
| 5/16 | KA-131 | 21/32" | 1" | 7-9/16" | 1-3/16" | 7/16" | 1/2" |
| 3/8 | KA-137 | 3/4" | 1-1/4" | 8-1/2" | 1-3/8" | 7/16" | 5/8" |
| 7/16 | KA-143 | 27/32" | 1-3/8" | 11" | 1-9/16" | 1/2" | 11/16" |
| 1/2 | KA-150 | 27/32" | 1-3/8" | 11-1/8" | 1-3/4" | 5/8" | 11/16" |
| 9/16 | KA-156 | 1-5/32" | 1-17/32" | 12-3/4" | 2" | 11/16" | 15/16" |
| 5/8 | KA-162 | 1-11/32" | 1-17/32" | 14-5/8" | 2-3/8" | 3/4" | 1-1/8" |
| 3/4 | KA-175 | 1-1/2" | 1-7/8" | 16-5/16" | 2-5/8" | 13/16" | 1-1/4" |
