Edwards Wire Rope  |  SKU: LK04G100LOLI

Coupling Links Grade 100 (For Overhead Lifting)

$23.12

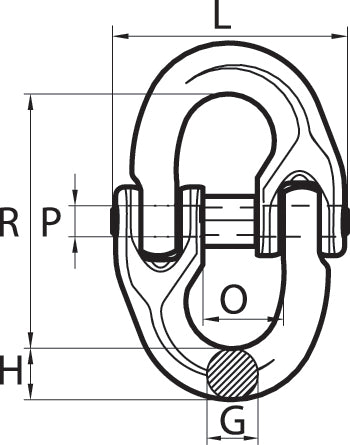

Chain Size Dimensions (Inches) Lbs. Per Each Working Load Limit (Lbs.)
Inches G H O R P X L
9/32 0.354 0.394 0.669 2.008 0.24 x 1.85 0.26 4,300
5/16 0.394 0.453 0.709 2.421 0.25 x 2.09 0.42 5,700
3/8 0.496 0.543 0.886 2.835 0.32 x 2.48 0.84 8,800
1/2 0.657 0.748 1.083 3.465 0.39 x 3.11 1.61 15,000
5/8 0.827 0.827 1.299 4.055 0.55 x 4.17 3.15 22,600
3/4 0.925 1.161 1.634 4.528 0.63 x 4.96 5.86 35,300
7/8 1.063 1.142 1.909 5.315 0.63 x 5.75 8.29 42,700



Caution: Never exceed the Working Load Limit

Edwards Wire Rope

Coupling Links Grade 100 (For Overhead Lifting)

From $23.12
Chain Size Dimensions (Inches) Lbs. Per Each Working Load Limit (Lbs.)
Inches G H O R P X L
9/32 0.354 0.394 0.669 2.008 0.24 x 1.85 0.26 4,300
5/16 0.394 0.453 0.709 2.421 0.25 x 2.09 0.42 5,700
3/8 0.496 0.543 0.886 2.835 0.32 x 2.48 0.84 8,800
1/2 0.657 0.748 1.083 3.465 0.39 x 3.11 1.61 15,000
5/8 0.827 0.827 1.299 4.055 0.55 x 4.17 3.15 22,600
3/4 0.925 1.161 1.634 4.528 0.63 x 4.96 5.86 35,300
7/8 1.063 1.142 1.909 5.315 0.63 x 5.75 8.29 42,700



Caution: Never exceed the Working Load Limit

Size

  • 9/32"
  • 5/16"
  • 3/8"
  • 1/2"
  • 5/8"
  • 3/4"
  • 7/8"
View product
