Edwards Wire Rope  |  SKU: HK04G70CLVGRAB

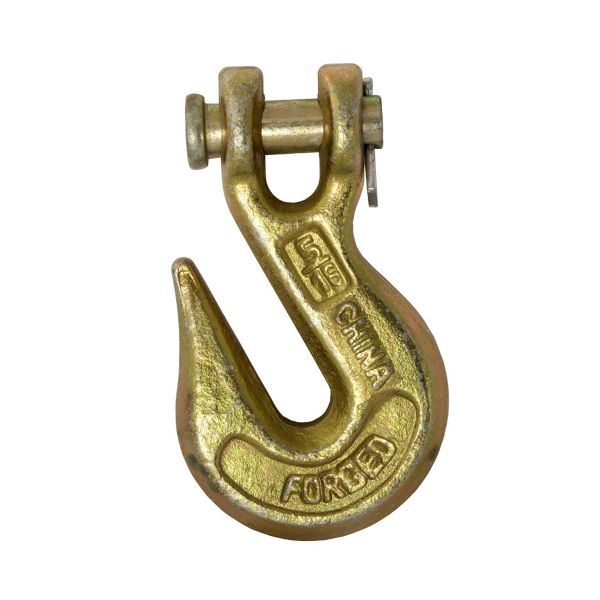

Grade 70 Clevis Grab Hooks

$4.04

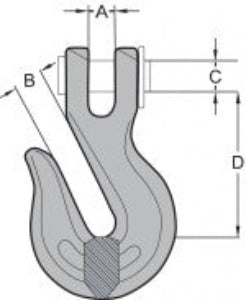

Size WLL B C D E
1/4" 3150 0.43 0.38 0.38 0.34 1.94
5/16" 4700 0.72 0.44 0.44 0.41 2.38
3/8" 6600 1.15 0.56 0.47 0.5 2.63
1/2" 11,300 2.35 0.69 0.63 0.66 3.5



GRADE 70 CLEVIS GRAB HOOKS

Forged steel, heat treated, painted. DO NOT USE FOR OVERHEAD LIFTING.

Edwards Wire Rope

Grade 70 Clevis Grab Hooks

From $4.04
Size WLL B C D E
1/4" 3150 0.43 0.38 0.38 0.34 1.94
5/16" 4700 0.72 0.44 0.44 0.41 2.38
3/8" 6600 1.15 0.56 0.47 0.5 2.63
1/2" 11,300 2.35 0.69 0.63 0.66 3.5



GRADE 70 CLEVIS GRAB HOOKS

Forged steel, heat treated, painted. DO NOT USE FOR OVERHEAD LIFTING.

Size

  • 1/4"
  • 5/16"
  • 3/8"
  • 1/2"
View product
