Miller | SKU:
Miller-D-515

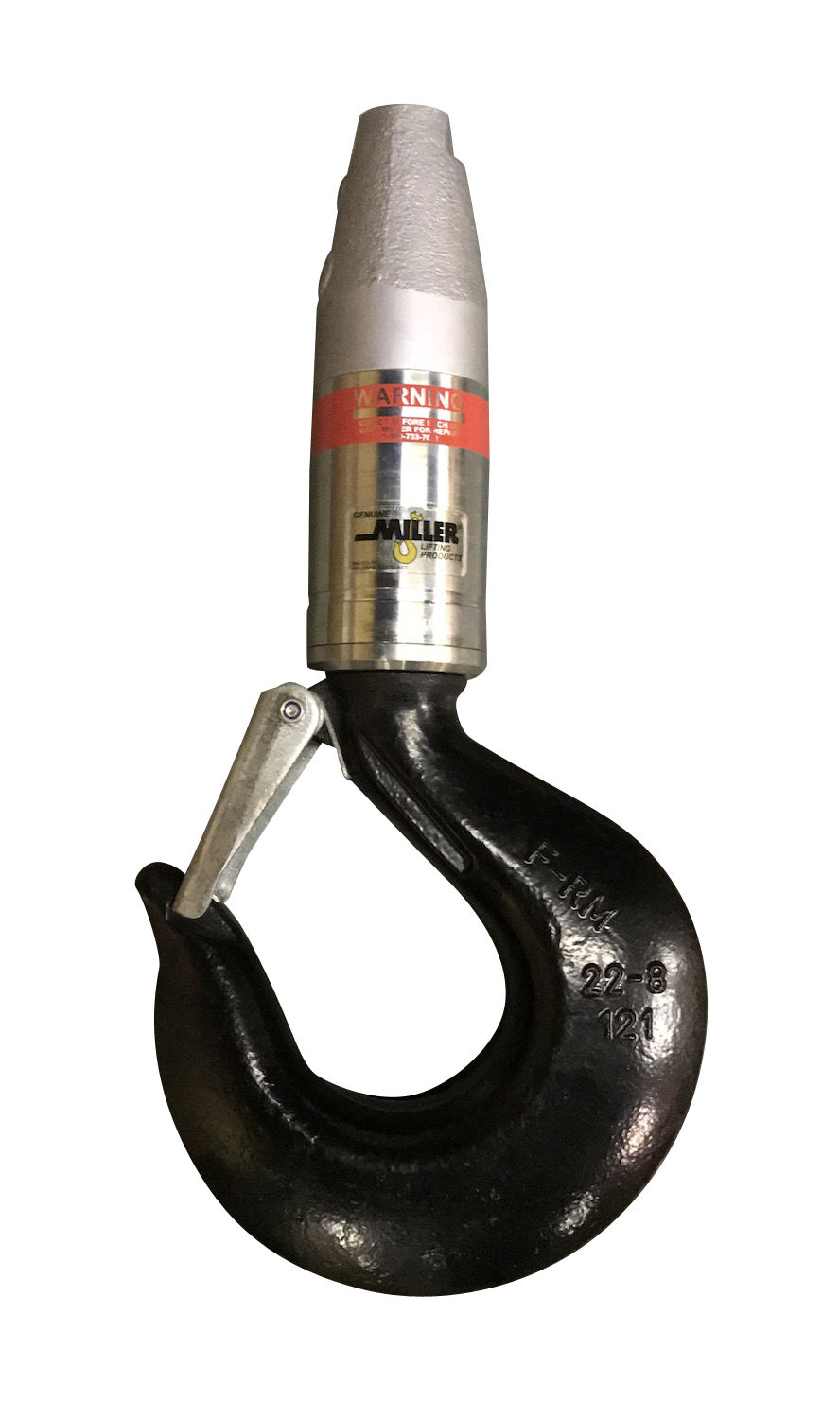

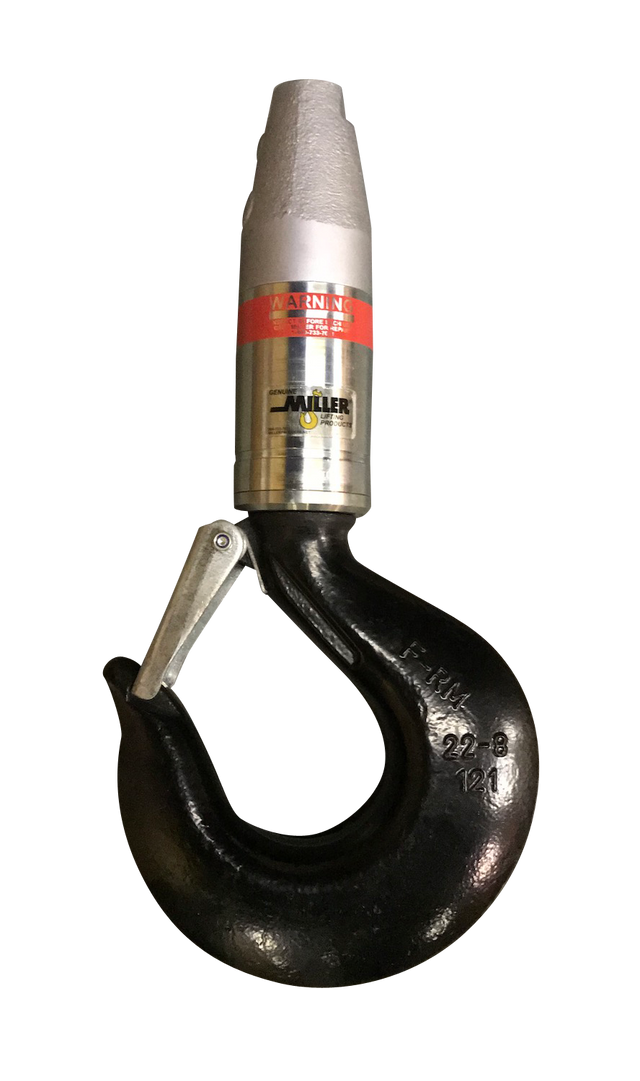

Miller Angular Contact Ball Bearing Swivel (Socket to Hook)
$1,560.00
Unit price
/
Unavailable
Miller Angular Contact Ball Bearing Swivel (Socket to Hook) - WLL 5 tons is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Miller Angular Contact Ball Bearing Swivel (Socket to Hook)
From
$1,560.00
Unit price
/
Unavailable
Dimensions:
| SKU | WLL | Length (in.) | Width (in.) | Height (in.) | Weight (LBS) |
|---|---|---|---|---|---|
| D-515 | 5 tons | 13.88 | 6.5 | 2.5 | 11 |
| EE-515 | 8.5 tons | 17.81 | 8.69 | 2.88 | 23.25 |
| G-515 | 10 tons | 21.38 | 11 | 4 | 46 |
| GG-515 | 15 tons | 21.38 | 11 | 4 | 46 |
| H-515 | 25 tons | 28.42 | 12.02 | 5 | 125 |
| HH-515 | 35 tons | 28.42 | 12.02 | 5 | 125 |
Specifications:
| SKU | Working Load limit (tons) | Wire Rope Size | Overall Length | Hook Opening | Socket Hole Dia. |
|---|---|---|---|---|---|
| D-515 | 5 | 5/8" | 13.88" | 1.69" | 0.69" |
| EE-515 | 8.5 | 3/4" | 17.81" | 2.25" | 0.81" |
| G-515 | 10 | 7/8" | 21.38" | 3" | 0.97" |
| GG-515 | 15 | 1" | 21.38" | 3" | 1.13" |
| H-515 | 25 | 1 1/4" | 28.42" | 3.54" | 1.38" |
| HH-515 | 35 | 1 1/2" | 28.42" | 3.54" | 1.63" |
Features
- Socket to Hook
- Angular contact ball bearing wire rope swivel
- 5:1 design factor
- Lubrication fitting
- Alloy steel, zinc-plated for corrosion resistance
- Made in USA
