Miller | SKU:
Miller-B-125

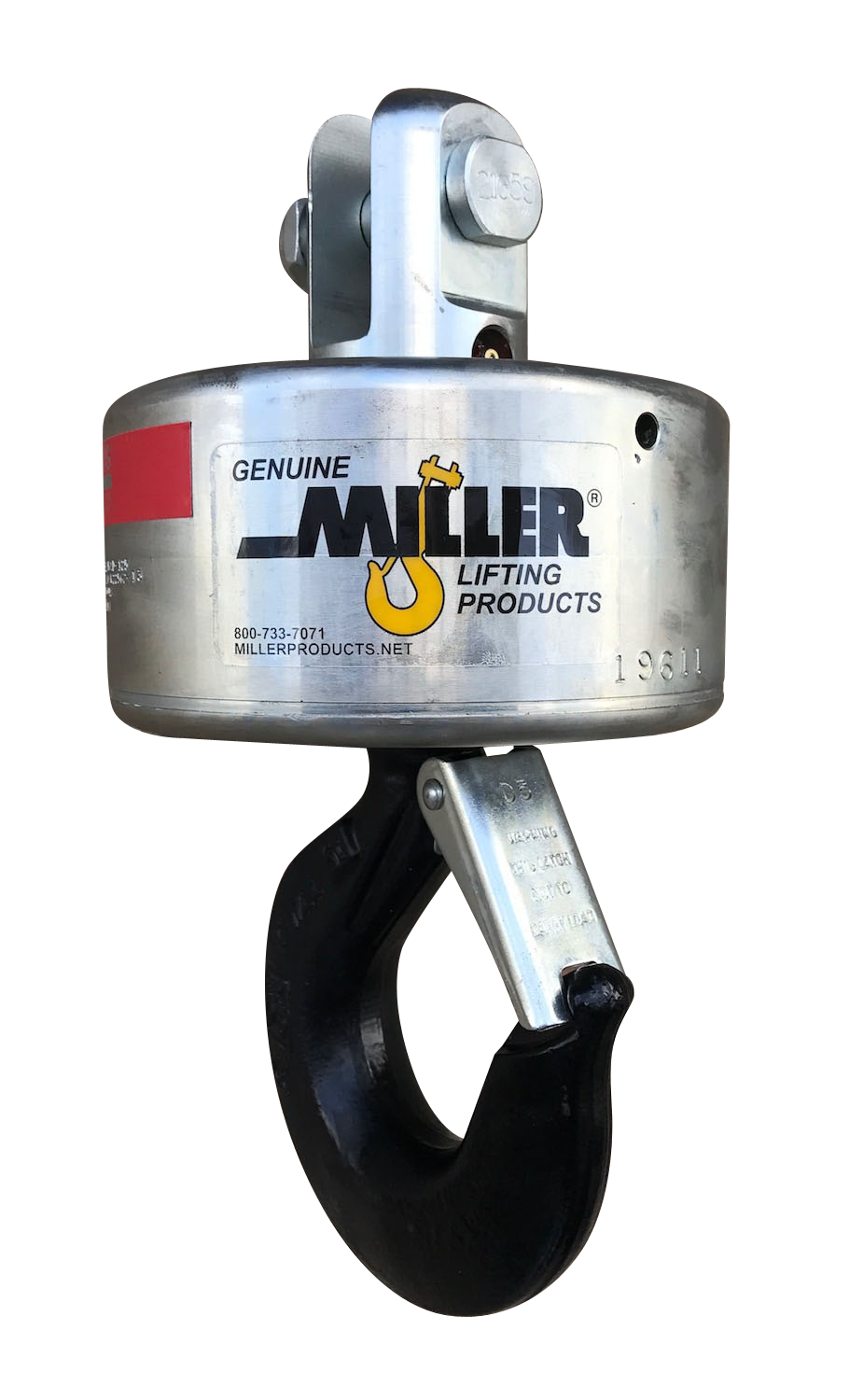

Miller g-Link Overhaul Swivel (Jaw to Hook)
$1,720.00
Unit price
/
Unavailable
Miller g-Link Overhaul Swivel (Jaw to Hook) - WLL 1.5 tons 9 lbs is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Miller g-Link Overhaul Swivel (Jaw to Hook)
From
$1,720.00
Unit price
/
Unavailable
Dimensions:
| SKU | WLL | Overhaul Wieght | Length (in.) | Width (in.) | Height (in.) | Weight (LBS) |
|---|---|---|---|---|---|---|
| B-125 | 1.5 tons | 9 | 7.91 | 4.09 | 4 | 9 |
| C-125 | 3 tons | 17.94 | 10.8 | 4.94 | 5 | 17.94 |
| D-125 | 5 tons | 43.81 | 15.57 | 6.5 | 7 | 43.81 |
| EE-125 | 8.5 tons | 60 | 17.68 | 8.94 | 7 | 60 |
Specifications:
| SKU | Working Load limit (tons) | Wire Rope Size | Overall Length | Overhaul Weight (lbs) |
|---|---|---|---|---|
| B-125 | 1.5 | 3/8" | 7.91" | 9 |
| C-125 | 3 | 1/2" | 10.8" | 17.94 |
| D-125 | 5 | 5/8" | 15.57" | 43.81 |
| EE-125 | 8.5 | 3/4" | 17.68" | 60 |
Features
- Jaw to Hook
- Compact overhaul swivel hook
- 5:1 design factor
- Bottom swiveling, angular contact bearings
- Forged hook with safety latch
- Made in USA
