Esmet Electroline | SKU:
ELU-Y-2618-N

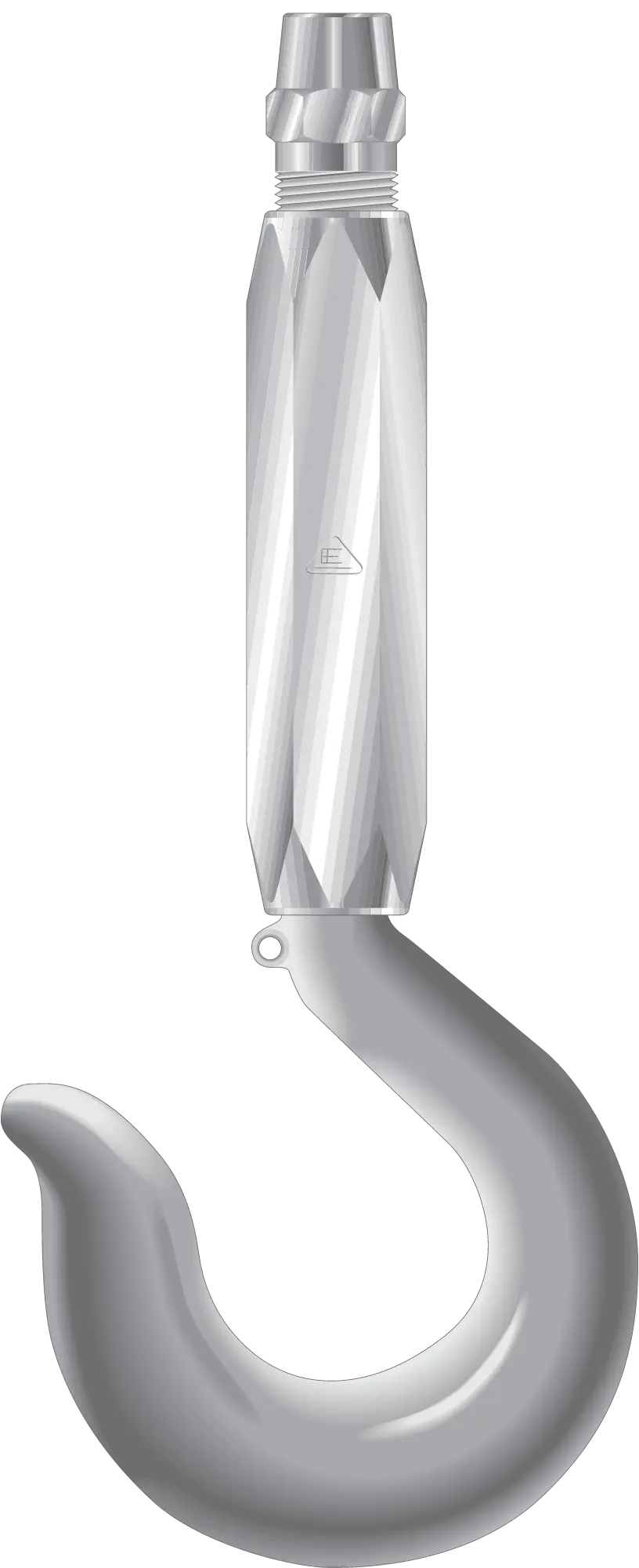

Non-Swivel Hook Socket Fitting
$81.06
Unit price
/
Unavailable
Non-Swivel Hook Socket Fitting - 3/16 / Self-Colored Steel is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
This product is available but requires more information!
Call (405) 672-0531 or fill out the form for custom pricing:
Non-Swivel Hook Socket Fitting
From
$81.06
Unit price
/
Unavailable
Electroline's non-swivel hook fitting features a swageless rope termination, allowing it to be quickly installed in the field without special tools or processes.
For both wire and synthetic rope from 3/16 to 1 inch in size.
Fitting strength exceeds the rated breaking strength of most ropes.
Made from solid steel, a zinc-plated option is available for increased corrosion resistance.
Available Products
| Rope Size (In.) | Part No. | Dimensions (In.) | Breaking Strength (lbs.) | ||||
|---|---|---|---|---|---|---|---|
| Self-Colored Steel | Zinc Plated Steel | A | C | D | E | ||
| 3/16 | Y-2618-N | Y-2618-V | 5-5/16" | 3/4" | 2-7/8" | 1" | 3,340 |
| 1/4 | Y-2625-N | Y-2625-V | 5-7/8" | 15/16" | 3-3/16" | 1-1/16" | 5,880 |
| 5/16 | Y-2631-N | Y-2631-V | 6-21/32" | 15/16" | 3-5/8" | 1-1/8" | 9,160 |
| 3/8 | Y-2637-N | Y-2637-V | 7-19/32" | 1-1/8" | 4-3/32" | 1-1/4" | 13,120 |
| 7/16 | Y-2643-N | Y-2643-V | 8-5/16" | 1-1/4" | 4-3/32" | 1-1/4" | 17,780 |
| 1/2 | Y-2650-N | Y-2650-V | 9-23/32" | 1-7/16" | 4-15/16" | 1-1/2" | 23,000 |
| 9/16 | Y-2656-N | Y-2656-V | 12" | 1-9/16" | 6-1/2" | 1-7/8" | 29,000 |
| 5/8 | Y-2662-N | Y-2662-V | 12" | 1-3/4" | 6-1/2" | 1-7/8" | 35,800 |
| 3/4 | Y-2675-N | Y-2675-V | 14-1/2" | 2" | 7-9/16" | 2-1/4" | 51,200 |
| 7/8 | Y-2687-N | Y-2687-V | 16-15/32" | 2-1/8" | 8-11/16" | 2-1/2" | 69,200 |
| 1 | Y-2699-N | Y-2699-V | 19-3/16" | 2-1/2" | 11" | 3-3/8" | 89,800 |
