Peerless  |  SKU: Peerless-PLAF-1-36

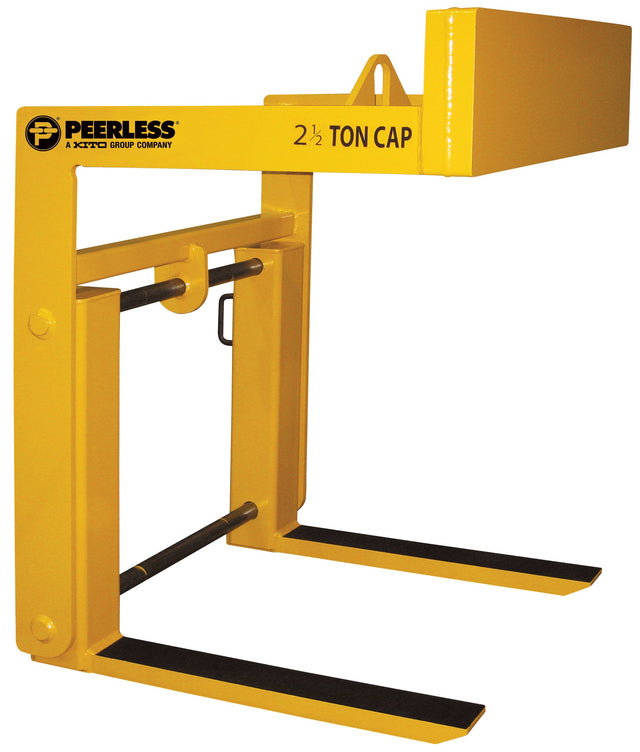

Peerless Adjustable Fork Pallet Lifter

$10,010.00

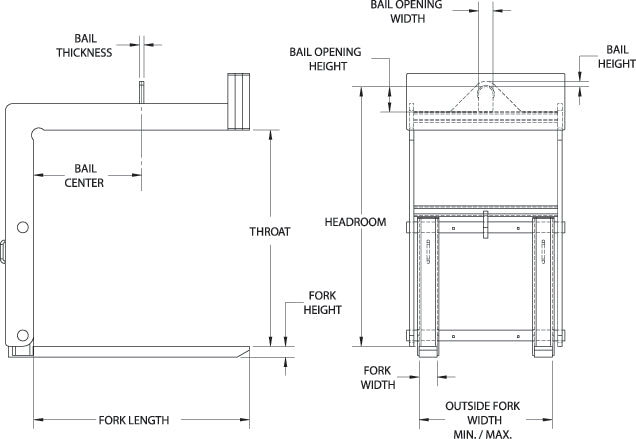

Capacity (US Tons) Fork Length Fork Width Fork Height Outside Fork Width Min/Max Bail Center Throat Opening Height Headroom Bail Height Bail Opening Width Bail Opening Height Bail Thickness Weight (Lbs.)
1 36 2 2 16/38 18 48 58 0.88 3 5 0.75 900
1 42 2 2 16/38 21 48 58 0.88 3 5 0.75 1025
1 48 2 2 16/38 24 48 59 0.88 3 5 0.75 1050
3 42 4.5 2.5 16/38 21 48 61.5 1.25 3 5 1 1690
3 48 4.5 2.5 16/38 24 48 61.5 1.25 3 5 1 1850
3 54 4.5 2.5 16/38 27 48 63 1.25 3 5 1 2700
5 48 5 3 16/38 24 48 65 1.5 4 7 1.25 2520
5 60 5 3 16/38 30 60 77 1.5 4 7 1.25 2960

Features

  • This style of lifter is designed to lift and carry palletized loads efficiently with an overhead crane.
  • Supplied standard with manually adjustable forks that allow the lifter to handle various pallet sizes.
  • Counter balanced to hang level when unloaded.
  • Easily maintained low headroom design.
  • The bail is a lower headroom design and is positioned to avoid side loading the crane hook.
  • Engineered and manufactured to ASME B30.20 & BTH-1 Design Category B Service Class 2.
  • Proof-Tested to 125% capacity and certificates supplied at No Additional Charge.
  • Made in USA.

Options

  • Larger throat openings
  • Greater outside fork widths
  • Additional sizes and capacities available

Notes

  • NOTE: Additional 2”-3” clearance is recommended above the load for ease of loading and unloading the pallet lifter.
