Peerless  |  SKU: Peerless-BTA-1/2-2.5/4

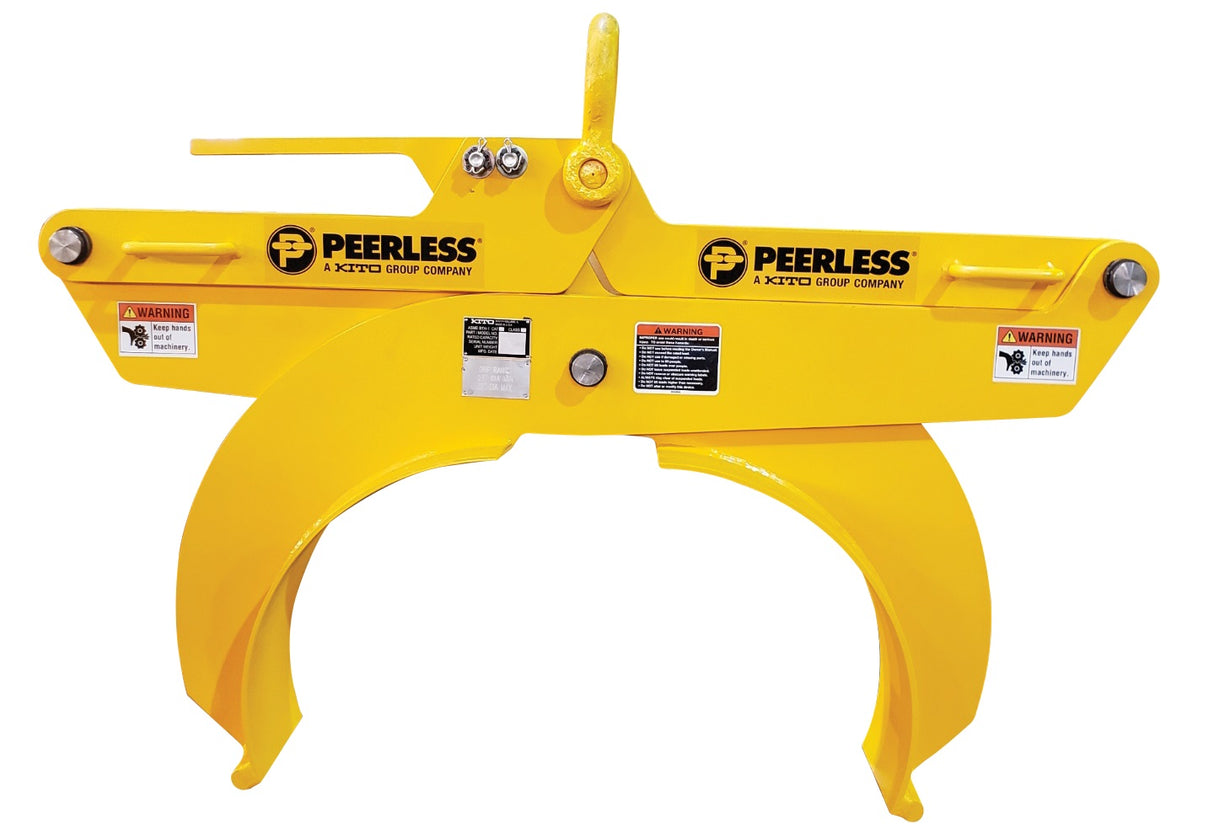

Peerless Bar Tong Adjustable

$926.00


Capacity (US Tons) Bare Steel Range Min Bare Steel Range Max Urethane Pad Range Min Urethane Pad Range Max Headroom Max Headroom Min Pad Width Bail Height Bail Opening Width Bail Opening Height Weight (Lbs.)
1/2 2.5 4 1.75 3.25 15 13 2.25 0.63 1.69 1.69 10
1 4 7 3.25 6.25 24 21 5 0.63 1.69 1.69 25
1 7 12 6.25 11.25 38 34 6 0.75 2 2 55
1 10 15 9.25 14.25 35 25 6 0.75 2.25 3.25 120
1 15 20 14.25 19.25 42 31 8 0.75 2.25 3.25 210

Features

  • This style of adjustable diameter tong is ideal for lifting round bars, cast or steel pipe of various diameters.
  • Hold open latch supplied on all 1 ton standard tongs.
  • Can be supplied with optional replaceable urethane pads for additional load protection.
  • The load must be balanced during the lift.
  • Can be used in pairs attached to a lifting/spreader beam to handle longer loads.
  • Engineered and manufactured to ASME B30.20 & BTH-1 Design Category B Service Class 2.
  • Proof-Tested to 125% capacity and certificates supplied at No Additional Charge.
  • Made in USA.

Options

  • Replaceable urethane pads
  • Hold open latch
  • Higher capacities available
