Peerless  |  SKU: Peerless-BSLB-2-6

Peerless Basket Sling Lifting Beam

$2,483.00

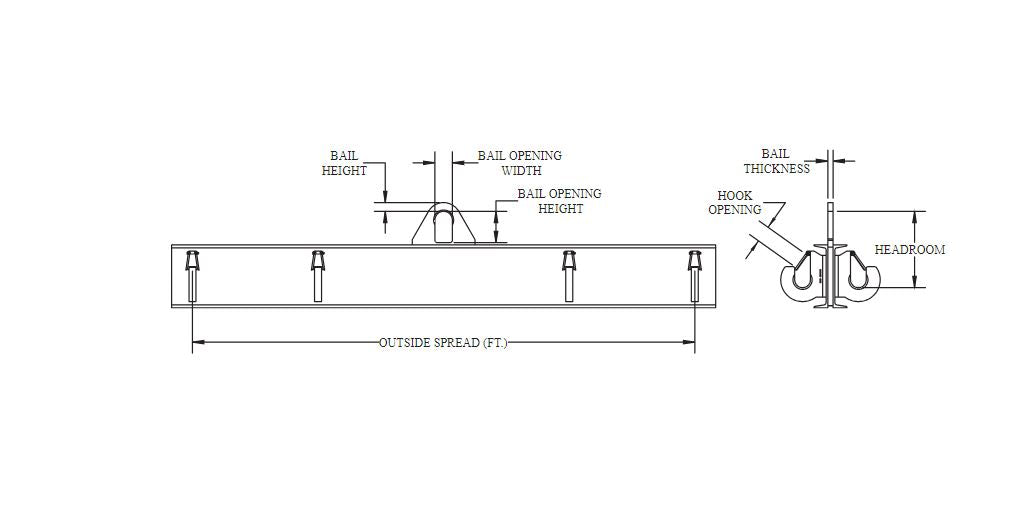

Capacity (US Tons) Outside Spread (Ft.) Headroom Bail Height Bail Opening Width Bail Opening Height Bail Thickness Hook Opening Weight (Lbs.)
2 6 11 0.88 3 5 0.75 1.13 168
2 8 12 0.88 3 5 0.75 1.13 236
2 10 13 0.88 3 5 0.75 1.13 315
2 12 14 0.88 3 5 0.75 1.13 394
5 6 16 2 4 7 1 1.13 289
5 8 17 2 4 7 1 1.13 368
5 10 17 2 4 7 1 1.13 473
5 12 17 2 4 7 1 1.13 525
10 6 18 2 4 7 1.25 1.75 347
10 8 20 2 4 7 1.25 1.75 525
10 10 23 2 4 7 1.25 1.75 893
10 12 23 2 4 7 1.25 1.75 1050
20 6 22 2.5 5 9 1.5 4 1019
20 8 25 2.5 5 9 1.5 4 1302
20 10 25 2.5 5 9 1.5 4 1319
20 12 25 2.5 5 9 1.5 4 2079

Features

  • This style of lifting beam can be utilized where headroom is limited with slings in a basket hitch.
  • Includes two sets of fixed hooks (3’ and 4’ beams have one set of hooks).
  • Two standard lift points for load adjustment; outside lift point and inside lift point (1/2 the outside spread).
  • Engineered & manufactured to ASME B30.20 & BTH-1 Design Category B Service Class 2.
  • Proof-Tested to 125% capacity & certificates supplied at No Additional Charge.
  • Made in USA.

Options

  • Additional lift points
  • Higher capacities
  • Additional lengths
  • Lower headroom bail
  • Additional hooks
  • Sling spacers
  • Horn hooks
