Peerless  |  SKU: Peerless-FPAB-3-84/60

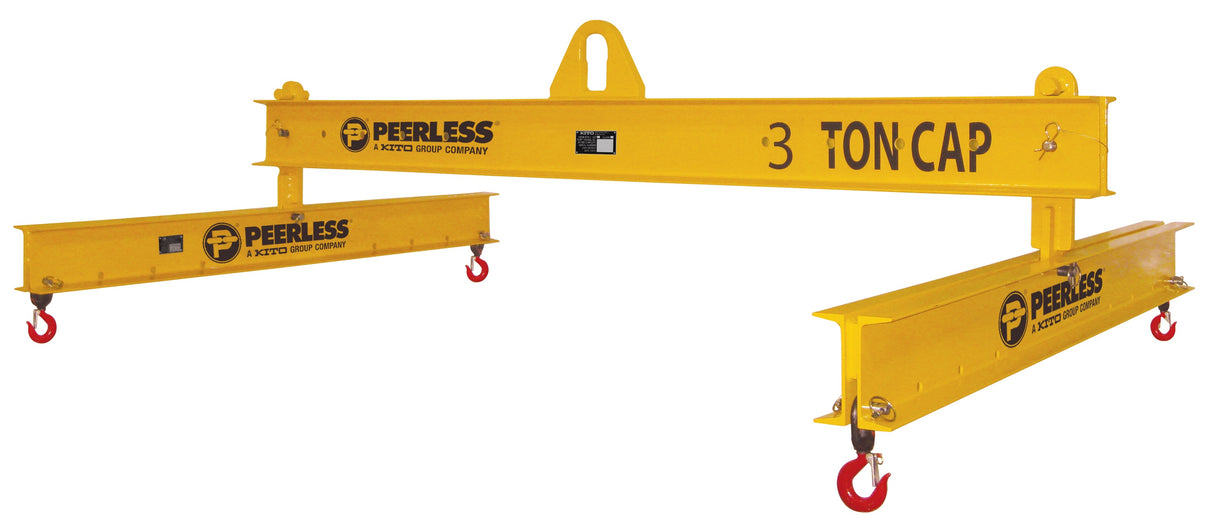

Peerless Four Point Adjustable Beam

$3,406.00

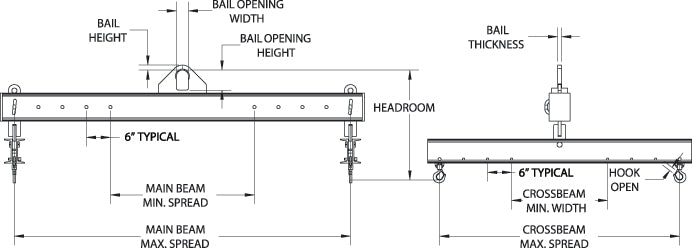

Capacity (US Tons) Main Beam Min/Max Spread Cross Beam Min/Max Spread Headroom Bail Height Bail Opening Width Bail Opening Height Bail Thickness Hook Opening Weight (Lbs.)
3 36/84 24/60 28 1.25 3 5 1 0.91 473
5 48/120 36/96 33 2 4 7 1.25 1 958
10 72/144 36/96 42 2 4 7 1.25 1.36 1928

Features

  • This standard four point adjustable spread style of lifting beam can be utilized where headroom is limited and when lifting objects that require multiple lift points.
  • Supplied with four swivel hooks.
  • Engineered and manufactured to ASME B30.20 & BTH-1 Design Category B Service Class 2.
  • Proof-Tested to 125% capacity and certificates supplied at No Additional Charge.
  • Made in USA.

Options

  • Beam stand
  • Additional sizes and options are available
