Peerless  |  SKU: Peerless-SSLB-1-1

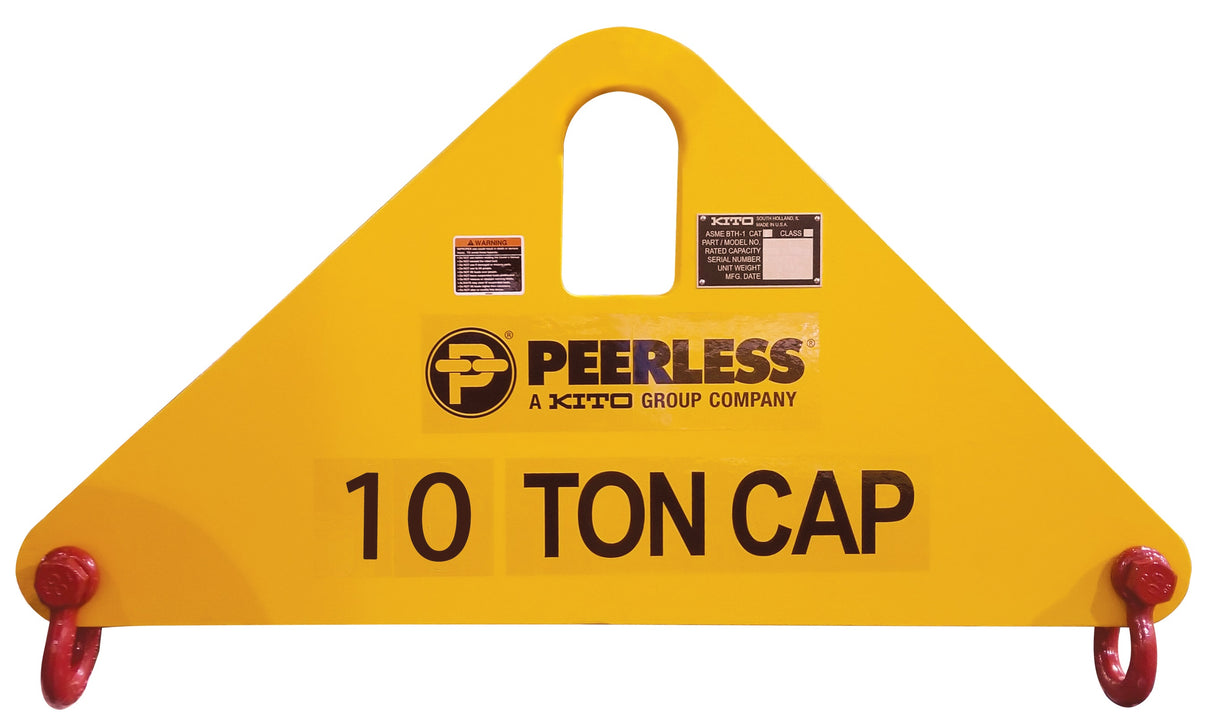

Peerless Short Span Lifting Beam

$664.00

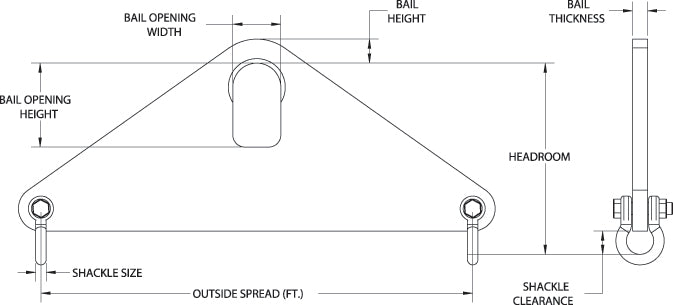

Capacity (US Tons) Outside Spread (Ft.) Headroom Bail Height Bail Opening Width Bail Opening Height Bail Thickness Shackle Size Shackle Clearance Weight (Lbs.)
1 1 9 0.88 3 5 0.75 5/8 1.6 18
1 2 10.25 0.88 3 5 0.75 5/8 1.6 36
1 3 12.34 0.88 3 5 0.75 5/8 1.6 63
3 1 9.75 1.25 3 5 1 3/4 1.8 30
3 2 11.75 1.25 3 5 1 3/4 1.8 58
3 3 14.5 1.25 3 5 1 3/4 1.8 100
10 2 16 2 4 7 1.25 7/8 2.1 103
10 3 20.25 2 4 7 1.25 7/8 2.1 178
20 2 20.25 2.5 5 9 1.5 1-1/4 3.1 170
20 3 25 2.5 5 9 1.5 1-1/4 3.1 278

Features

  • This style of lifting beam is ideal for short span applications and can be utilized where headroom is limited.
  • Supplied with a pair of shackles and one standard spread.
  • Engineered and manufactured to ASME B30.20 & BTH-1 Design Category B Service Class 2.
  • Proof-Tested to 125% capacity and certificates supplied at No Additional Charge.
  • Made in USA.

Options

  • Additional lift points
  • Higher capacities (supplied w/upper shackle)
  • Additional lengths
  • Upper shackle
  • Upper shackle w/oblong link
  • Hooks
