Edwards Wire Rope  |  SKU: TB06X6BODY

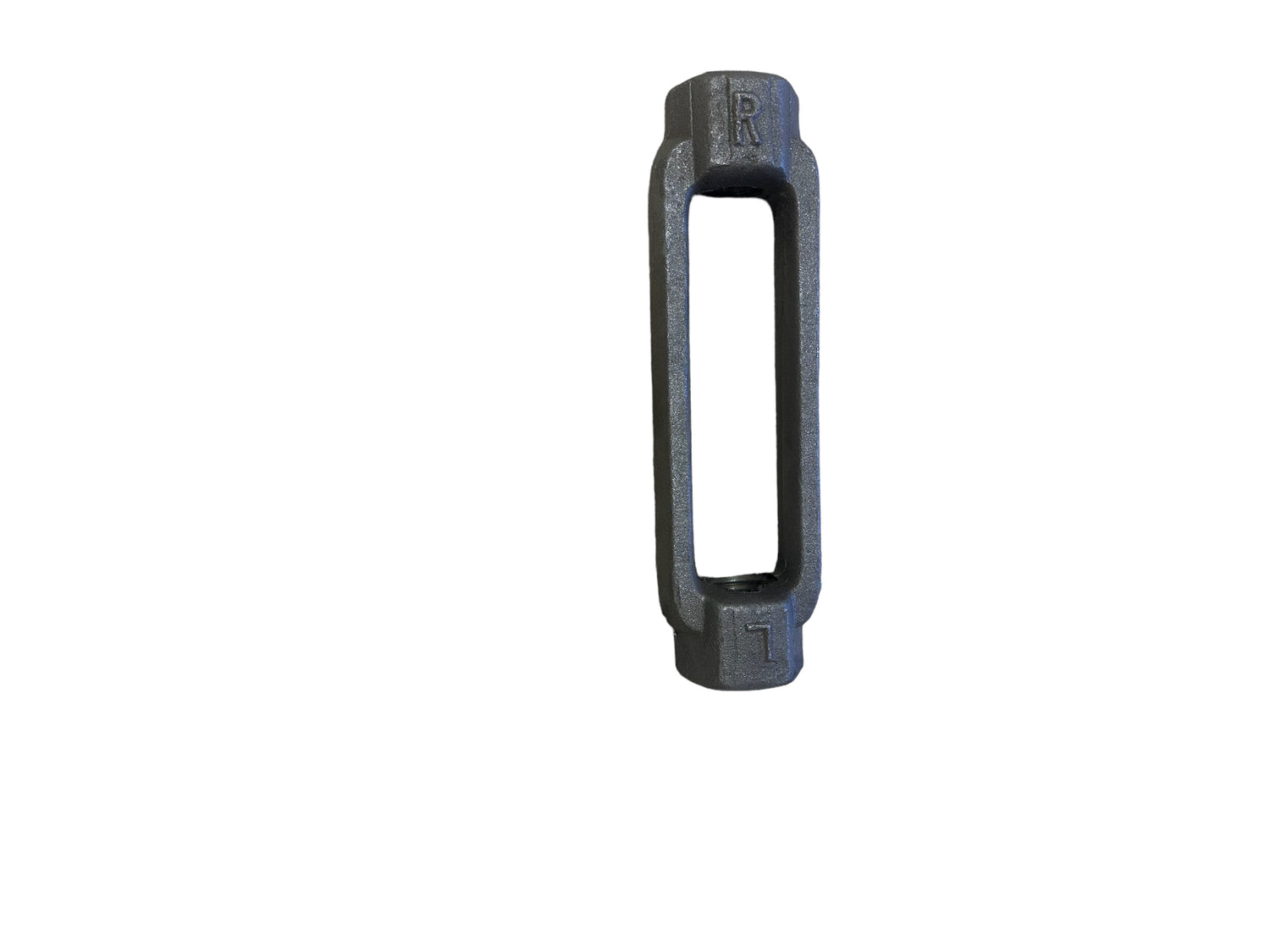

Turnbuckle Body Self Colored

$3.60

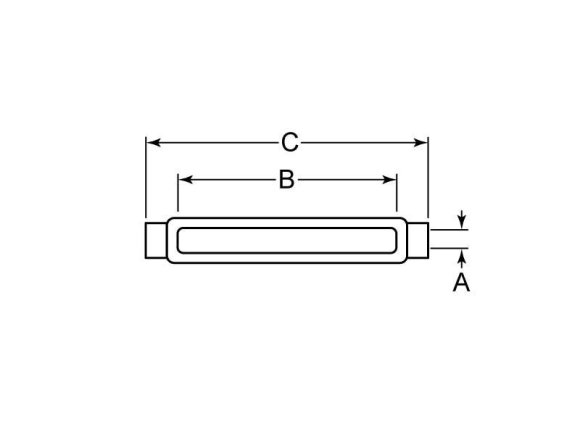

Size Working Approx. Approx. Dimensions in Inches
Diameter (A) Load Weight each Weight each
x Limit in Body Only Stub End in
Take-up (B) Pounds in Pounds Pounds C A B
3/8"x6" 1,200 0.3 0.7 7.13 0.56 6
1/2"x6" 2,200 0.6 1.4 7.5 0.75 6
1/2"x9" 2,200 0.8 1.7 10.5 0.75 9
1/2"x12" 2,200 1 1.8 13.5 0.75 12
5/8"x6" 3,500 1 2 7.88 0.94 6
5/8"x9" 3,500 1.2 2.5 10.88 0.94 9
5/8"x12" 3,500 1.4 3.1 13.88 0.94 12
3/4"x6" 5,200 1.2 3.3 8.25 1.13 6
3/4"x9" 5,200 1.6 4 11.25 1.13 9
3/4"x12" 5,200 2.1 4.8 14.25 1.13 12
3/4"x18" 5,200 3.2 5.8 20.25 1.13 18
7/8"x6" 7,200 1.8 4.5 8.63 1.31 6
7/8"x12" 7,200 2.7 6.4 14.63 1.31 12
7/8"x18" 7,200 3.8 - 20.63 1.31 18
1"x6" 10,000 2.5 6.3 9 1.5 6



Turnbuckles are used for adjusting the tension of lengths of ropes, cables, tie rods and other tensioning systems. It comes in a variety of ends that could be the same or a combination of different ends. Those ends thread into a body which is left hand and right hand. The tension can be adjusted by rotating the body which will draw the ends into the body.

According to A.S.T.M. F 1145. Hot galvanized, drop forged. Bodies normalized; end fittings quenched and tempered.

**Sizes up to 2 3/4 in diameter and 24" in length**

Edwards Wire Rope

Turnbuckle Body Self Colored

From $3.60
Size Working Approx. Approx. Dimensions in Inches
Diameter (A) Load Weight each Weight each
x Limit in Body Only Stub End in
Take-up (B) Pounds in Pounds Pounds C A B
3/8"x6" 1,200 0.3 0.7 7.13 0.56 6
1/2"x6" 2,200 0.6 1.4 7.5 0.75 6
1/2"x9" 2,200 0.8 1.7 10.5 0.75 9
1/2"x12" 2,200 1 1.8 13.5 0.75 12
5/8"x6" 3,500 1 2 7.88 0.94 6
5/8"x9" 3,500 1.2 2.5 10.88 0.94 9
5/8"x12" 3,500 1.4 3.1 13.88 0.94 12
3/4"x6" 5,200 1.2 3.3 8.25 1.13 6
3/4"x9" 5,200 1.6 4 11.25 1.13 9
3/4"x12" 5,200 2.1 4.8 14.25 1.13 12
3/4"x18" 5,200 3.2 5.8 20.25 1.13 18
7/8"x6" 7,200 1.8 4.5 8.63 1.31 6
7/8"x12" 7,200 2.7 6.4 14.63 1.31 12
7/8"x18" 7,200 3.8 - 20.63 1.31 18
1"x6" 10,000 2.5 6.3 9 1.5 6



Turnbuckles are used for adjusting the tension of lengths of ropes, cables, tie rods and other tensioning systems. It comes in a variety of ends that could be the same or a combination of different ends. Those ends thread into a body which is left hand and right hand. The tension can be adjusted by rotating the body which will draw the ends into the body.

According to A.S.T.M. F 1145. Hot galvanized, drop forged. Bodies normalized; end fittings quenched and tempered.

**Sizes up to 2 3/4 in diameter and 24" in length**
